FIRAS limits on monochromatic photon injection and dark photon mixing#
This tutorial reproduces a few representative points from two FIRAS constraint figures in the paper:
Fig. 7 — FIRAS upper limit on monochromatic photon injection \(\Delta N_\gamma/N_\gamma\) vs injection frequency \(x_i\), at fixed redshift \(z_h\) (Chluba 2015).
Fig. 8 — FIRAS upper limit on dark-photon kinetic mixing \(\epsilon\) vs mass \(m_{A'}\), via the resonant \(\gamma\!\to\!A'\) depletion of the CMB blackbody (Chluba, Cyr & Johnson 2024).
Both follow the same recipe: run the PDE solver with the relevant injection scenario, build a per-unit-amplitude template \(\Delta n(x)\), fit it against the FIRAS residuals, and invert. The paper figures sweep many points; here we run 3 points each to demonstrate the workflow.
Limit |
CL |
Source |
|---|---|---|
\(\|\mu\|<4.5\times10^{-5}\), \(\|y\|<7.5\times10^{-6}\) |
68% |
Fixsen+ 1996 |
\(\|\mu\|<9\times10^{-5}\), \(\|y\|<1.5\times10^{-5}\) |
95% |
Fixsen+ 1996 |
[ ]:
import numpy as np
import matplotlib.pyplot as plt
from spectroxide import (
run_photon_sweep, solve,
mu_from_photon_injection, greens_function_photon,
g_bb, mu_shape, y_shape, ALPHA_RHO,
FIRASData, MU_FIRAS_68, Y_FIRAS_68, MU_FIRAS_95,
apply_style, C,
)
from spectroxide.dark_photon import resonance_redshift, gc_per_epsilon_sq
apply_style()
firas = FIRASData()
print(firas)
1. FIRAS limit on monochromatic photon injection#
Inject \(\Delta N_\gamma\) photons into a narrow line at \(x_i = h\nu_i/(kT_z)\) at redshift \(z_h\). The PDE returns \((\mu, y)\) that scale linearly with the injected \(\Delta N_\gamma/N_\gamma\). Inverting the FIRAS bound at 68% CL,
The \(\mu\) response vanishes at \(x_0 = 4/(3\alpha_\rho)\approx 3.6\) (Chluba 2015) — energy- and number-injection cancel — so the limit is weakest there. We pick three illustrative points: a low-\(x_i\) point at \(z_h=2\times10^6\) where the bound is tight, an intermediate point near the \(\mu\)-zero, and a high-\(x_i\) point at \(z_h=3\times10^5\).
[ ]:
def photon_limit_pde(x_inj, z_h, dn_over_n=1e-5):
"""Run PDE for monochromatic photon injection; return FIRAS 68% CL limit on Δ_N/N."""
res = run_photon_sweep(
x_inj=x_inj,
delta_n_over_n=dn_over_n,
sigma_x=0.05 * x_inj,
z_injections=[z_h],
z_end=500,
timeout=900,
)['results'][0]
mu_per = res['pde_mu'] / dn_over_n
y_per = res['pde_y'] / dn_over_n
lim_mu = MU_FIRAS_68 / abs(mu_per) if abs(mu_per) > 1e-20 else np.inf
lim_y = Y_FIRAS_68 / abs(y_per) if abs(y_per) > 1e-20 else np.inf
return min(lim_mu, lim_y), mu_per, y_per
points = [
(1.0, 2e6, C['blue']),
(3.0, 1e6, C['orange']), # near μ-zero
(8.0, 3e5, C['teal']),
]
print(f'{"x_i":>5s} {"z_h":>10s} {"μ/unit":>10s} {"y/unit":>10s} {"ΔN/N max":>10s}')
print('-' * 55)
pde_results = []
for x_i, z_h, _ in points:
lim, mu_per, y_per = photon_limit_pde(x_i, z_h)
pde_results.append(lim)
print(f'{x_i:5.1f} {z_h:10.0e} {mu_per:+10.2e} {y_per:+10.2e} {lim:10.2e}')
# Build GF curves at the three z_h for context
x_grid = np.logspace(np.log10(0.1), np.log10(15), 200)
def y_per_unit_gf(x_i, z_h):
"""Project the photon GF onto the y-shape via simple least-squares."""
xg = np.linspace(0.5, 25, 1000)
dn = greens_function_photon(xg, x_i, z_h)
A = np.column_stack([mu_shape(xg), y_shape(xg), g_bb(xg)])
coef, *_ = np.linalg.lstsq(A, dn, rcond=None)
return coef[1]
[16]:

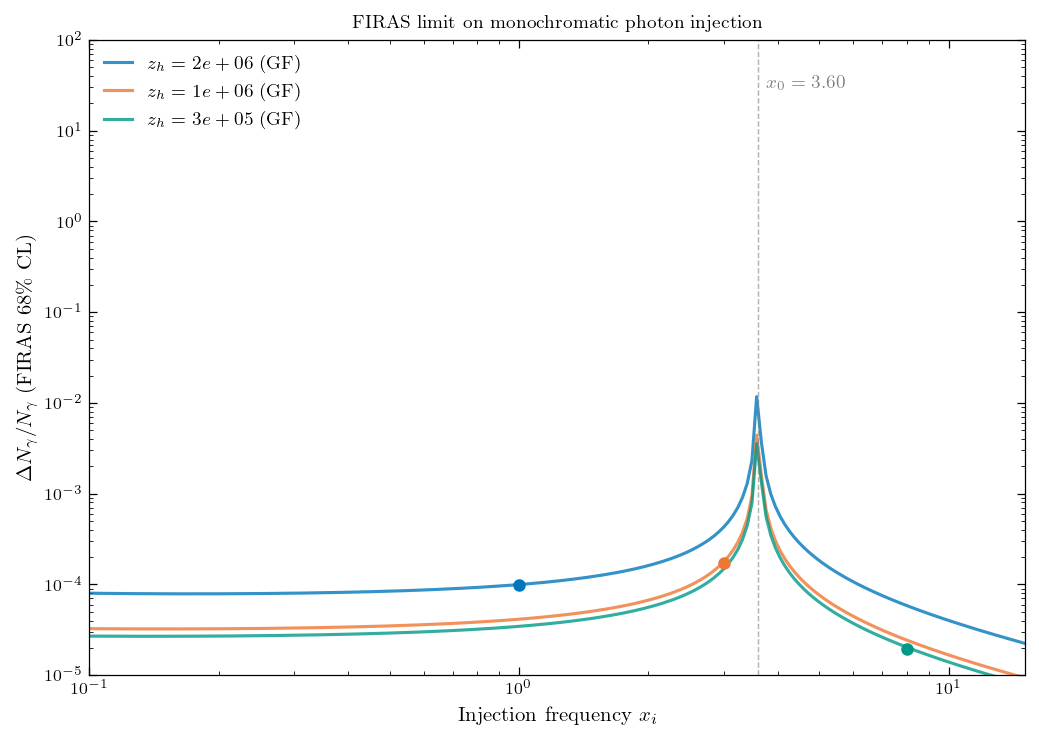

fig, ax = plt.subplots(figsize=(7, 5))
for (x_i, z_h, color), lim in zip(points, pde_results):
mu_g = np.array([mu_from_photon_injection(x, z_h, 1.0) for x in x_grid])
y_g = np.array([y_per_unit_gf(x, z_h) for x in x_grid])
lim_g = np.minimum(
np.where(np.abs(mu_g) > 1e-20, MU_FIRAS_68 / np.abs(mu_g), np.inf),
np.where(np.abs(y_g) > 1e-20, Y_FIRAS_68 / np.abs(y_g), np.inf),
)
ax.semilogy(x_grid, lim_g, color=color, lw=1.5, alpha=0.8,
label=rf'$z_h={z_h:.0e}$ (GF)')
ax.plot(x_i, lim, 'o', color=color, ms=5, mew=1, zorder=5)
x0 = 4.0 / (3.0 * ALPHA_RHO)
ax.axvline(x0, color='gray', ls='--', lw=0.7, alpha=0.6)
ax.text(x0 + 0.15, 3e1, rf'$x_0 = {x0:.2f}$', color='gray', fontsize=9)
ax.set(xlabel=r'Injection frequency $x_i$',
ylabel=r'$\Delta N_\gamma / N_\gamma$ (FIRAS 68\% CL)',
xscale='log', xlim=(0.1, 15), ylim=(1e-5, 1e2),
title='FIRAS limit on monochromatic photon injection')
ax.legend(loc='upper left', fontsize=9)
ax.plot([], [], 'o', color='k', ms=4, mec='k', label='PDE')
plt.tight_layout(); plt.show()
/tmp/ipykernel_28588/3872152923.py:7: RuntimeWarning: divide by zero encountered in divide
np.where(np.abs(y_g) > 1e-20, Y_FIRAS_68 / np.abs(y_g), np.inf),
2. FIRAS limit on dark-photon kinetic mixing#
Resonant \(\gamma\!\to\!A'\) conversion at \(z_{\rm res}\), where \(\omega_{\rm pl}(z_{\rm res})=m_{A'}\), depletes the CMB blackbody by
(narrow-width approximation, Mirizzi+2009; Chluba & Cyr 2024). Subsequent Comptonization and DC/BR partial rethermalization shape the surviving distortion.
Pipeline. For each mass: (i) find \(z_{\rm res}\) from the plasma frequency; (ii) compute \(\gamma_{\rm con}/\epsilon^2\); (iii) run the PDE with dark_photon_resonance injection at a reference \(\epsilon\); (iv) build a per-\(\gamma_{\rm con}\) template \(\Delta n(x)\) and fit it to FIRAS via firas.profile_limit_floating_T; (v) translate the bound on \(\gamma_{\rm con}\) back to \(\epsilon\) via
\(\epsilon = \sqrt{\gamma_{\rm con}^{(95)}/(\gamma_{\rm con}/\epsilon^2)}\).
[ ]:
def strip_gbb_nc(x, dn):
"""Number-conserving G_bb subtraction: enforces ∫ x² Δn dx = 0."""
gbb = g_bb(x)
alpha = np.trapz(x**2 * dn, x) / np.trapz(x**2 * gbb, x)
return dn - alpha * gbb
def dark_photon_limit(m_ev, eps_ref=1e-8):
"""Self-consistent FIRAS 95% CL on ε at mass m. One-pass linear NWA template."""
z_res = resonance_redshift(m_ev)
gpe2, _ = gc_per_epsilon_sq(m_ev)
gc_ref = gpe2 * eps_ref**2
# PDE: solver auto-sets z_start=z_res and enables NC for depletion
npts = 4000 if z_res < 1e6 else 8000
res = solve(
injection={'type': 'dark_photon_resonance', 'epsilon': eps_ref, 'm_ev': m_ev},
z_end=100, n_points=npts, timeout=1500,
)
x_pde = res.x
dn_per_gc = strip_gbb_nc(x_pde, res.delta_n) / gc_ref
# FIRAS profile-likelihood limit on γ_con (floating T and galactic emission)
gc_95 = firas.profile_limit_floating_T(
lambda x: np.interp(x, x_pde, dn_per_gc), cl=0.95,
)['upper_limit']
eps_lim = np.sqrt(gc_95 / gpe2)
# If the limit is far from the linearization point, iterate once
if eps_lim / eps_ref > 3 or eps_ref / eps_lim > 3:
return dark_photon_limit(m_ev, eps_ref=eps_lim)
return z_res, eps_lim, gc_95
masses = [4e-10, 1e-9, 1e-8] # post-recomb, bump, μ-era asymptote
print(f'{"m [eV]":>9s} {"z_res":>7s} {"γ_con^(95)":>12s} {"ε_95":>10s}')
print('-' * 50)
dp_results = []
for m in masses:
z_res, eps, gc = dark_photon_limit(m)
dp_results.append((m, z_res, eps))
print(f'{m:9.1e} {z_res:7.0f} {gc:12.2e} {eps:10.2e}')
[19]:

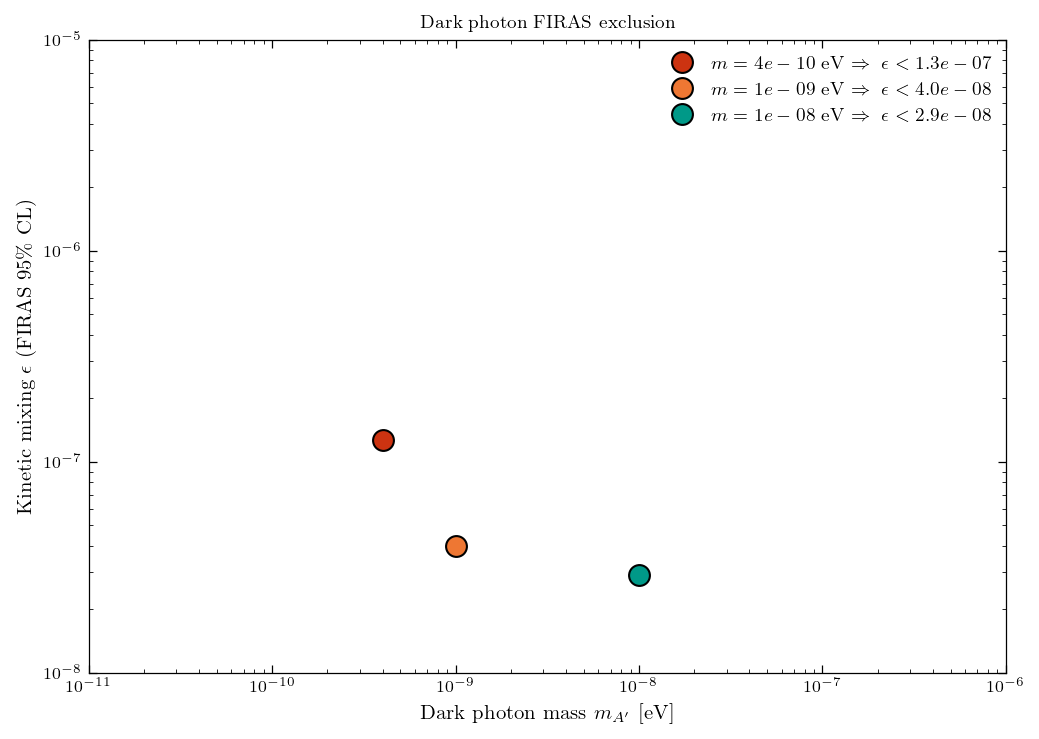

fig, ax = plt.subplots(figsize=(7, 5))
for (m, z_res, eps), color in zip(dp_results, [C['red'], C['orange'], C['teal']]):
ax.plot(m, eps, 'o', color=color, ms=10, mec='k', mew=1, zorder=5,
label=rf'$m={m:.0e}$ eV $\Rightarrow\ \epsilon<{eps:.1e}$')
ax.set(xlabel=r"Dark photon mass $m_{A'}$ [eV]",
ylabel=r'Kinetic mixing $\epsilon$ (FIRAS $95\%$ CL)',
xlim=(1e-11, 1e-6), ylim=(1e-8, 1e-5), xscale="log", yscale="log",
title='Dark photon FIRAS exclusion')
ax.legend(loc='upper right', fontsize=9)
plt.tight_layout(); plt.show()
